Product Details:
Payment & Shipping Terms:
|
| Name: | Hook Strip Flat Shale Shaker Screen | Size: | 585X1168mm |
|---|---|---|---|
| Material: | 316Stainless Steel Wire Mesh | Shippment: | Sea Transportation |
| Packing: | Carton And Pallet | Color: | As Youre Request |
| Highlight: | industrial sieves and screens,api mesh |
||

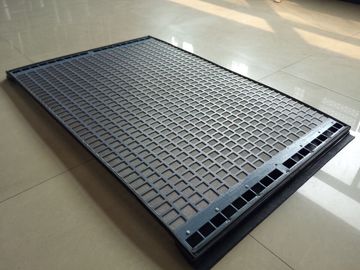

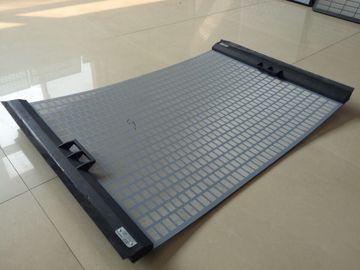

316 Hook Strip Flat Shale Shaker Screen API 100 For Shale Shaker
Specifications

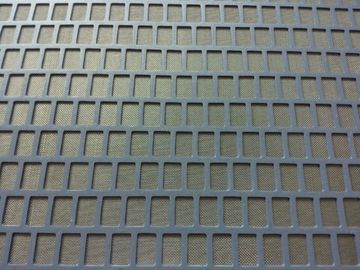

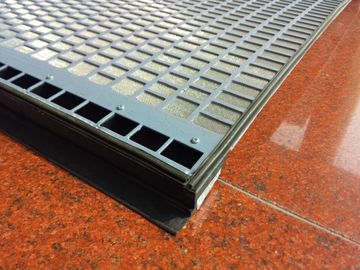

Hook Strip Soft Screen is constructed with two or three layers of stainless steel wire mesh bonded to the steel support plank.
1.The mesh of each cloth is different. The screen will have better effect with accurate collocation. Because of the difference of the mesh and the hole of the support sheet, we will promise the most effective area on the condition of bearing enough force.
2.The SS wire cloth bonds with the support plank together tightly so that the strength of the screen is enough strong. The service time of the screen is extended.
3.The surface is divided into more small parts. They can prevent excessive expansion of local damage. At the same time, we have the special rubber plug to repair the damage. It can save time and reduce the cost.
| Screen Model | Range of Mesh | Dimension(W*L) | Brand&Model of shaker |
| GMHS-1 | 20-325 | 697×1053mm | FLC2000 |
| GMHS-2 | 20-325 | 695×1050mm | |
| GMHS-3 | 20-325 | 697×846mm | FLC313M |
| GMHS-4 | 20-325 | 903×1155mm | BEM-3 |
| GMHS-5 | 20-325 | 1212×1141mm | ALS-2 |
| GMHS-6 | 20-325 | 915×1150mm | LCM-2D |
| GMHS-7 | 20-325 | 700×1165mm | S250 |
