| Mesh Material: | SS304 Or 316 | Mesh Layer: | 2 Or 3 |
|---|---|---|---|
| Micron: | 1-500 | Standard Length: | 30m |
| Application: | Filters | Wire Diameter: | 0.0203-1.80mm |
| High Light: | stainless steel woven wire cloth,stainless steel wire mesh roll |
||

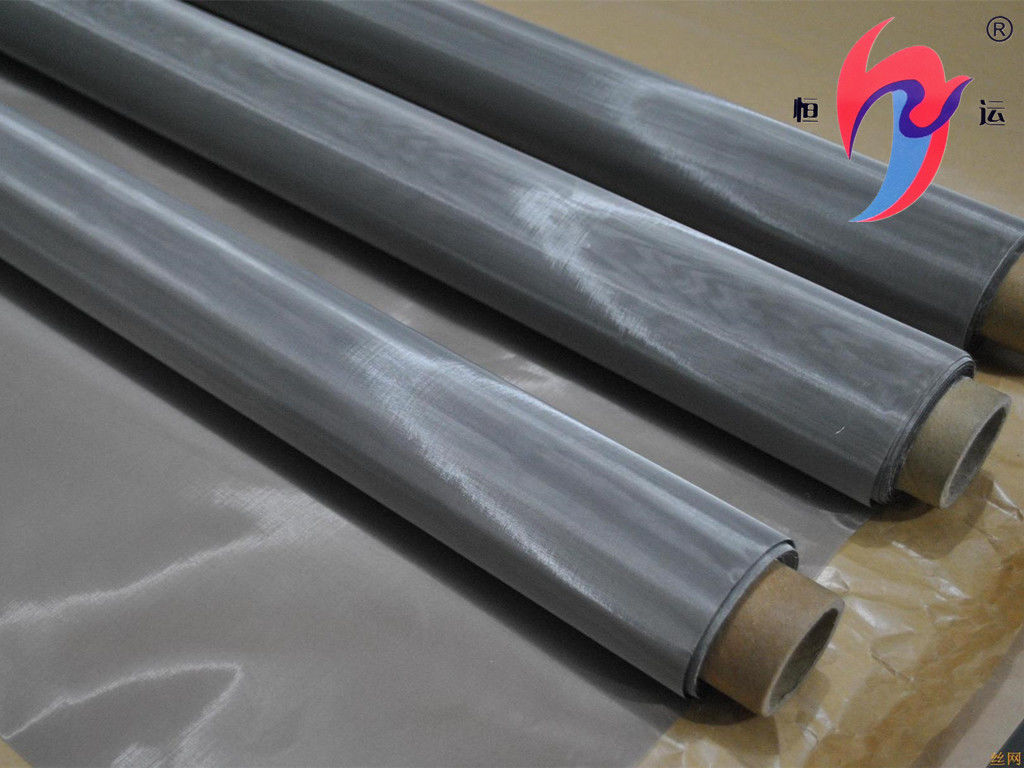

316 fine mesh stainless steel wire mesh//stainless steel woven wire cloth / fine mesh
| material |
common material:stainelss steel 304 316 904L 2205 2207 430 310 317 309 etc. 304L 316L |
| special material:pure nickel wire, Ni-cr wire, monel, inconel wire etc. | |
| wire diameter | 0.023-2.8mm |
| weaving type |
plain weave, twill weave and dutch weave, bamboo weave Hollander weave etc. |
| mesh counts | 1-2300meshes |
| micron size | 500 400 300 200 100 80 70 25 micron |
| technique | woven wire mesh |
| mesh rolls size | 1x30m 2x30m 1.524x30m 0.914x30m etc. |
| sample | free and avaliable |
| surface | flat and bright |
Feature of the stainless steel wire mesh
Application of the stainelss steel wire mesh
| Stainless Steel Wire Mesh | ||
| Mesh/Inch | Diameter (mm) |
Aperture (mm) |
| 2MESH | 1.8 | 10.90 |
| 3MESH | 1.6 | 6.866 |
| 4MESH | 1.2 | 5.15 |
| 5MESH | 0.91 | 4.17 |
| 6MESH | 0.80 | 3.433 |
| 8MESH | 0.60 | 2.575 |
| 10MESH | 0.55 | 1.990 |
| 12MESH | 0.50 | 1.616 |
| 14MESH | 0.45 | 1.362 |
| 16MESH | 0.40 | 1.188 |
| 18MESH | 0.35 | 1.061 |
| 20MESH | 0.30 | 0.970 |
| 26MESH | 0.28 | 0.696 |
| 30MESH | 0.25 | 0.597 |
| 40MESH | 0.21 | 0.425 |
| 50MESH | 0.19 | 0.318 |
| 60MESH | 0.15 | 0.273 |
| 70MESH | 0.14 | 0.223 |
| 80MESH | 0.12 | 0.198 |
| 90MESH | 0.11 | 0.172 |
| 100MESH | 0.10 | 0.154 |
| 120MESH | 0.08 | 0.132 |
| 140MESH | 0.07 | 0.111 |
| 150MESH | 0.06 | 0.109 |
| 160MESH | 0.06 | 0.099 |
| 180MESH | 0.053 | 0.088 |
| 200MESH | 0.053 | 0.074 |
| 250MESH | 0.04 | 0.062 |
| 300MESH | 0.035 | 0.050 |
| 325MESH | 0.03 | 0.048 |
| 350MESH | 0.03 | 0.043 |
| 400MESH | 0.025 | 0.0385 |
| 500MESH | 0.025 | 0.0258 |
| 635MESH | 0.020 | 0.020 |
| Width 0.4m-8m | ||
