Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification

China Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification supplier
Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification supplier Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification supplier Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification supplier

Large Image :  Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification

Product Details:

Place of Origin: CHINA
Brand Name: GUANGMING
Certification: ISO9001 API
Model Number: GMF

Payment & Shipping Terms:

Minimum Order Quantity: 10PC
Packaging Details: 2 pcs/carton box, 50 carton boxes/wooden box , OR as your request
Payment Terms: Western Union
Supply Ability: 200PC PER DAY
Detailed Product Description
Mesh Material: SS304 Or 316 Type: Mine Sieving Mesh
Mesh Layer: 2 Or 3 Model: Composite Frame
Highlight:

stainless steel sieve mesh

,

vibrating sieving mesh

API Oilfield Drilling Kemtron KPT 26 shaker screen China supplier



Shale shaker screens are a part of drilling equipment used in many industries, such as coal cleaning, mining, oil and gas drilling. These screens are considered to be the first phase of a solids control system on a drilling rig. They are used to purify the liquid by removing large solids also called cuttings from the drilling fluid.

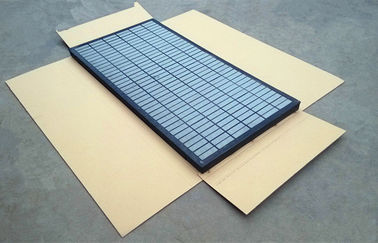

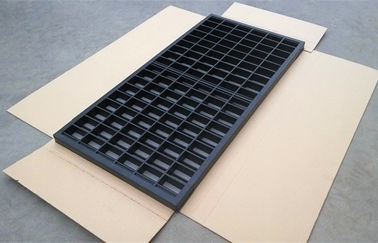

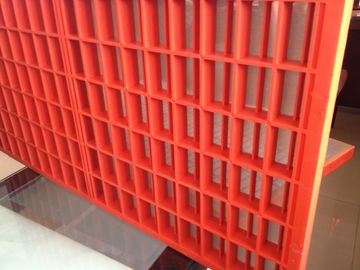

1. Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining,or directly bonded on the frame.

2. Every layer of wire cloth has different meshes,accurateky and reasonably making screening more micromesh.

3. High-strength composite frame screen and moderate tensional screening cloth, that form areliable whole,greatly enhance the tolerable flow .

4. Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .

5. Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.

6. Excellent high-strength composite frames enhance corrosion resistance, Have good shock absorption and extend working life of screen .


Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification

Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification



Our company can prodcue different type of composite frame screens according to customer’s requirement .

Screen Model Range of Mesh

Dimension
( Width x Length)

Brand & Model of Shaker
GMF-1/1 20-325 585×1165mm MONGOOSE PT&PRO
GMF-1/2 20-325 585×1165mm MONGOOSE PT&PRO
GMF-2/1 20-325 635×1250mm KING COBRA&COBRA
GMF-2/2 20-325 635×1250mm KING COBRA&COBRA
GMF-3 20-325 610×660mm MD-2&MD-3






API RP 13C(ISO 13501)
D100 Separation(Microns) API Screen Number
>780.0 to 925.0 API 20
>655.0 to 780.0 API 25
>550.0 to 655.0 API 30
>462.5 to 550.0 API 35
>390.0 to 462.5 API 40
>327.5 to 390.0 API 45
>275.0 to 327.5 API 50
>231.0 to 275.0 API 60
>196.0 to 231.0 API 70
>165.0 to 196.0 API 80
>137.5 to 165.0 API 100
>116.5 to 137.5 API 120
> 98.0 to 116.5 API 140
> 82.5 to 98.0 API 170
> 69.0 to 82.5 API 200
> 58.0 to 69.0 API 230
> 49.0 to 58.0 API 270
> 41.5 to 49.0 API 325





















Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification         Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification




GUANGMING METAL PRODUCTS CO., LTD strives for the existence by qualiy,for development by reputation. Our company has high quality products,best prices and reliable after -sale services. On the basis of mutually beneficial and friendly cooperation. We really hope to establish good business relationship and create a better future with old and new customers at home and abroad .

Oilfield Kemtron KPT 26 Shale Shaker Screen Corrosion Resistant API Certification
