Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001:2008 | Material: | SS Steel |
|---|---|---|---|
| Type: | Perforated Mesh | Application: | Filter |
| Hole Shape: | Hexagonal, Round, Squire, Retangle, Etc. | Feature: | Beautiful, Anti-corrossion |
| Keywords: | Perforated Metal | ||
| High Light: | decorative perforated sheet metal panels,perforated metal screen |
||

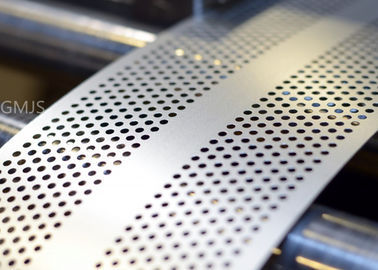

China factory supply 316 stainless steel perforated metal/SUS304 stainless steel decorative wire mesh
| 1) Material |
Our Perforated Metal Sheet always choose premium raw material include stainless steel sheet, iron sheet, galvanized metal sheet aluminum sheet and so on. |
| 2) Hole Pattern | The perforated Hole Pattern we can do:Round, Rectangular,Square, Triangle, Diamond, Hexagonal, Cross, Slotted and any other special patterns. |
| 3) Applications | The perforated metal sheets can regularly used for screening,decoration, sifting, filtration, drying, cooling, cleaning and any other applications. |
| 4) Customizable | The hole pattern, sheet size, raw material of perforated metal sheetcan precisely made according to the customers' specifications. |
| 5) The factors in Quotation | *Perforated Hole Pattern *Sheet shape & size *Raw material *Unique Requirements *Applications *Any specifications you need concern the products. |
| ROUND HOLES STAGGERED PATTERN | |||
| HOLE | CENTERS |
GAUGE / PLATE THICK. |
OPEN AREA |
| .020" RD | .045" Stag | 26 | 18% |
| 1/32" RD | 1/16" Stag | 22 | 23% |
| 3/64" RD | 5/64" Stag | 24 | 33% |
| 3/64" RD | 3/32" Stag | 22 thru 18 | 23% |
| 1/16" RD | 3/32" Stag | 22 thru 16 | 40% |
| 1/16" RD | 7/64" Stag | 20 thru 16 | 30% |
| 1/16" RD | 1/8" Stag | 26 thru 16 | 23% |
| 5/64" RD | 1/8" Stag | 22 thru 14 | 35% |
| 3/32" RD | 5/32" Stag | 24 thru 14 | 33% |
| 3/32" RD | 3/16" Stag | 24 | 23% |
| .117 RD | 5/32" Stag | 18 | 51% |
| 1/8" RD | 3/16" Stag | 24 thru 11 | 40% |
| 1/8" RD | 7/32" Stag | 14 thru 12 | 30% |
| 1/8" RD | 1/4" Stag | 14, 13 | 23% |
| 9/64" RD | 3/16" Stag | 18 | 51% |
| 5/32" RD | 3/16" Stag | 22 thru 16 | 63% |
| 5/32" RD | 1/4" Stag | 20 thru 10 | 35% |
| 3/16" RD | 7/32" Stag | 22 thru 16 | 67% |
| 3/16" RD | 1/4" Stag | 24 thru 12 | 51% |
| 3/16" RD | 5/16" Stag | 10, 3/16" | 33% |
| 3/16" RD | 3/8" Stag | 14 thru 10 | 23% |
| 1/4" RD | 5/16" Stag | 20 thru 16 | 58% |
| 1/4" RD | 3/8" Stag | 26 thru 1/4" | 40% |
| 17/64" RD | 5/16" Stag | 20 | 66% |
| 5/16" | 7/16" Stag | 20 thru 1/4" | 46% |
| 3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% |
| 1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% |
| 1/2" RD | 3/4" Stag | 16 | 40% |
| 5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% |
| 3/4" RD | 1" Stag | 16 thru 1/4" | 51% |
| 1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% |
| 1-1/4" RD | 1-5/8" Stag | 1/4" | 54% |
| 1-1/2" RD | 2" Stag | 1/4" | 51% |
| 2" RD | 2-1/2" Stag | 1/4" | 58% |
| 2-1/2" RD | 3" Stag | 3/16" | 63% |
| 3" RD | 3-1/2" Stag | 3/16" | 67% |
| 4" RD | 4-1/2" Stag | 10 | 72% |
