|Mesh Material:||SS304 Or 316||Type:||Mine Sieving Mesh|
|Mesh Layer:||2 Or 3||Model:||Composite Frame|

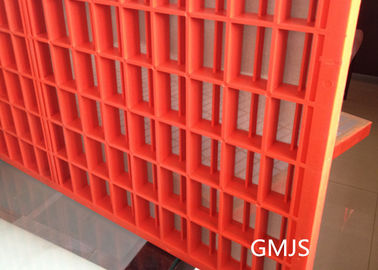

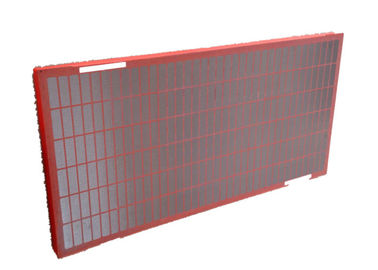

Frame Type Shaker Screen With Composite Frame For Oil Industry

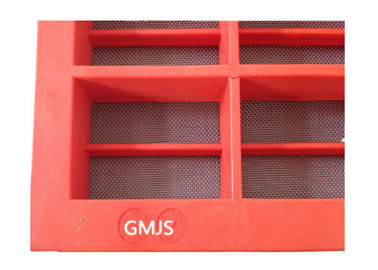

1. Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining,or directly bonded on the frame.
2. Every layer of wire cloth has different meshes,accurateky and reasonably making screening more micromesh.
3. High-strength composite frame screen and moderate tensional screening cloth, that form areliable whole,greatly enhance the tolerable flow .
4. Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .
5. Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.
6. Excellent high-strength composite frames enhance corrosion resistance, Have good shock absorption and extend working life of screen .
Our company can prodcue different type of composite frame screens according to customer’s requirement .
|Screen Model||Range of Mesh||
|Brand & Model of Shaker|
|API RP 13C(ISO 13501)|
|D100 Separation(Microns)||API Screen Number|
|>780.0 to 925.0||API 20|
|>655.0 to 780.0||API 25|
|>550.0 to 655.0||API 30|
|>462.5 to 550.0||API 35|
|>390.0 to 462.5||API 40|
|>327.5 to 390.0||API 45|
|>275.0 to 327.5||API 50|
|>231.0 to 275.0||API 60|
|>196.0 to 231.0||API 70|
|>165.0 to 196.0||API 80|
|>137.5 to 165.0||API 100|
|>116.5 to 137.5||API 120|
|> 98.0 to 116.5||API 140|
|> 82.5 to 98.0||API 170|
|> 69.0 to 82.5||API 200|
|> 58.0 to 69.0||API 230|
|> 49.0 to 58.0||API 270|
|> 41.5 to 49.0||API 325|
Composite frame screen technology effectively eliminates the inherent performance-limiting problems of conventional metal frames, including rusting, delamination and a heavier and reduced processing area. DURAFLO screens have as much as twice the functional life of screens mounted on metal and can handle appreciably higher throughput capacity.
Name: 304/316 Stainless Steel Wire Mesh
The Sieving Mesh parts adopt high quality 304/316 stainless steel wire mesh with good strength and wear properties.

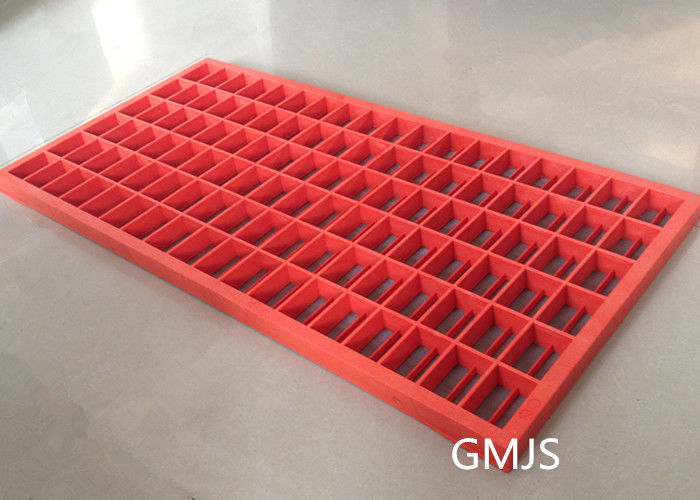

Material: polyurethane material,
Feature: High intensity, portability, shock resistence, corrosion resistence.

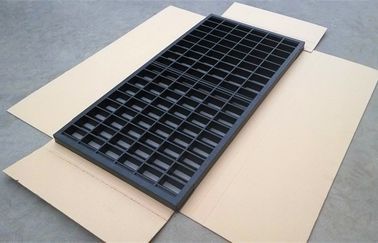

Package and Delivery
1 pc/carton, 40pcs/wooden case for Oil Shale Shaker Screen, or according to your requirement.
1. We have our own workshop to produce all the Semi-finished raw materials, including SS woven mesh and the frames, THIS WILL REDUCE YOUR COST AT LEAST 10%.
2. We have 30 years experience in manufacturing and serving this products, meanwhile, we have cooperated with PetrolChina for almost 20 years with the title of high-quality supplier which means SERVING YOU STABLE QUALITY ALL THE TIME.
3. We developed the machines ourselves to the third generation, ahead of other factories, we can provide 300+ pcs composite frame screens each day, WE CAN ASSURE YOUR ORDER WILL BE FINISHED IN THE SHORTEST TIME.
4.We also provide Stainless Steel Wire Mesh and Composite Frame, If you interest, welcome to take a sample to have a test.
