Composite Frame Brandt Shaker Screens , Oil Drilling Fluid Vibrating Screen

China Composite Frame Brandt Shaker Screens , Oil Drilling Fluid Vibrating Screen supplier

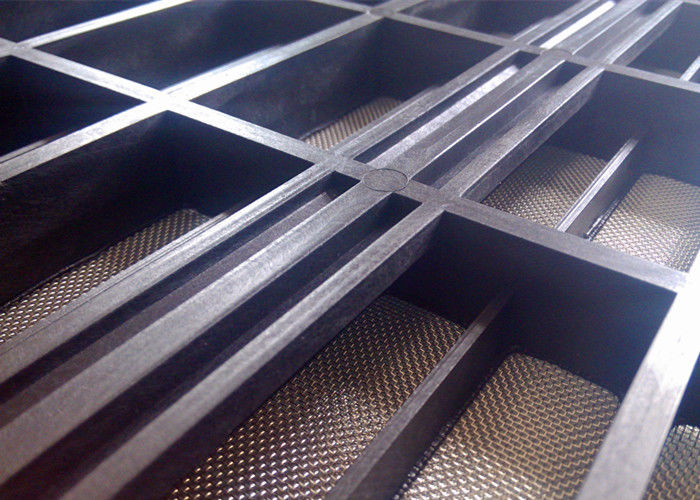

Large Image :  Composite Frame Brandt Shaker Screens , Oil Drilling Fluid Vibrating Screen

Product Details:

Place of Origin: CHINA
Brand Name: GUANGMING
Certification: ISO9001
Model Number: GMYJS

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: 1 pcs/carton box, 50 carton boxes/wooden box , OR as your request
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 200PC PER DAY
Contact Now
Detailed Product Description
Mesh Material: SS304 Or 316 Type: Mine Sieving Mesh
Mesh Layer: 2 Or 3 Model: Steel Frame
Working Temperature: -40℃-150℃ Size: 1251 * 635 Mm

Composite Brandt King Cobra Shaker Screen For Mud Drilling System


Specifications


Brandt VSM300 shale shaker screen structure

Brandt VSM300 shaker screen including 3 different type of screen with 2 larger one and a smaller one.This VSM300 shale shaker is three decks. The first deck is scalping, then the primary, last deck is called secondary deck. Scalping deck will be fitted with 3 pcs screen, primary deck will be fitted with 4 pcs screen, secondary deck is fitted with 4 pcs screen. Totally, the VSM300 request 11 pcs screen. All of them are steel frame screen and pretensioned type.



API RP 13C(ISO 13501)

D100 Separation(Microns)

API Screen Number

>780.0 to 925.0

API 20

>655.0 to 780.0

API 25

>550.0 to 655.0

API 30

>462.5 to 550.0

API 35

>390.0 to 462.5

API 40

>327.5 to 390.0

API 45

>275.0 to 327.5

API 50

>231.0 to 275.0

API 60

>196.0 to 231.0

API 70

>165.0 to 196.0

API 80

>137.5 to 165.0

API 100

>116.5 to 137.5

API 120

> 98.0 to 116.5

API 140

> 82.5 to 98.0

API 170

> 69.0 to 82.5

API 200

> 58.0 to 69.0

API 230

> 49.0 to 58.0

API 270

> 41.5 to 49.0

API 325
