Galvanized 1.5mm Slotted Sand Control Screen Water Well Pipe High Flow Capacity

China Galvanized 1.5mm Slotted Sand Control Screen Water Well Pipe High Flow Capacity supplier

Large Image :  Galvanized 1.5mm Slotted Sand Control Screen Water Well Pipe High Flow Capacity

Product Details:

Place of Origin: China
Brand Name: Guang Ming
Certification: ISO9001
Model Number: GMFS-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Packaging Details: 1 pcs/carton box, 50 carton boxes/wooden box
Delivery Time: According to your order
Supply Ability: 150 pcs/day
Contact Now
Detailed Product Description
Name: 316 Stainless Steel Sand Control Screen Tube Tube Outer Diameter: 60-178mm
Weight: 4.6-26kg Material: 316 , 304
Custom-made: Support Packing: As Your Request
Filter Rating: 20%-80%

galvanized water well 1.5mm slotted sand control screen pipe





Descriptions


Normal size(mm)

 Screen Pipe

OD(mm)

ID(mm)

OD(inch)

OD(mm)

Thread
Φ63 73 63



60.3


Φ74 85 74

73


Φ92 102 92

88.9


Φ142 154 142

139.7


Φ220 232 220

219.1




• The length upto 6000mm

• End connection:welded rings,threaded couplings

• Used in oil well,gas well,water well sand control,slurry filter

• Well screen contain single-deck well screen,double-deck well screen,pipe base well screen etc.



Product Show

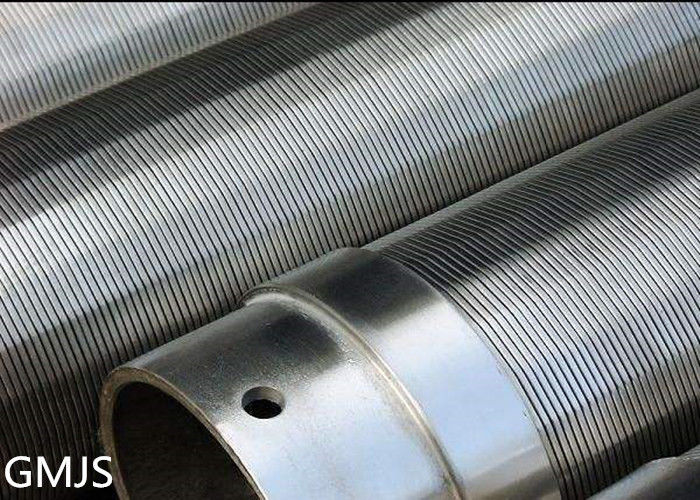

Galvanized 1.5mm Slotted Sand Control Screen Water Well Pipe High Flow Capacity

Galvanized 1.5mm Slotted Sand Control Screen Water Well Pipe High Flow Capacity

Features



1. High flow capacity. The jacket is made of vee wire well screen this allow more water or oil to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.



2. Perfect integral strength and strong anti-deformation ability .The internal part of filtration jacket is supported by base pipe and the outer protective shroud can be fixed outside the filtration jacket if necessary. The integral strength of base pipe with drilled holes is merely 2~3% less than standard casing or tubing. So it can withstand compression deformation from stratum with sufficient integral strength. Even if local deformation occurs, the gap of compressed part will not be enlarged. It has been proved to be highly reliable on sand control.



3. More choice: The screen jacket material can be stainless steel or low carbon steel,it is can as per your requirement.



4. Slot with high density, low flow resistance .Slot density are 3~5 times as traditional slotted screen, with low flow resistance. It is conducive to increase production of oil or gas.



5. Good manufacturability makes high efficiency, low cost, and large-scale production achievable.
