Oil Field Shale Shaker Screen With High Strength Composite Frame 585X1165mm

China Oil Field Shale Shaker Screen With High Strength Composite Frame 585X1165mm supplier
Oil Field Shale Shaker Screen With High Strength Composite Frame 585X1165mm supplier Oil Field Shale Shaker Screen With High Strength Composite Frame 585X1165mm supplier Oil Field Shale Shaker Screen With High Strength Composite Frame 585X1165mm supplier

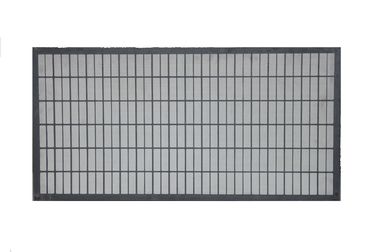

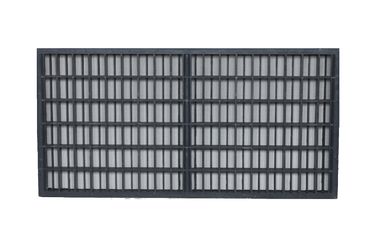

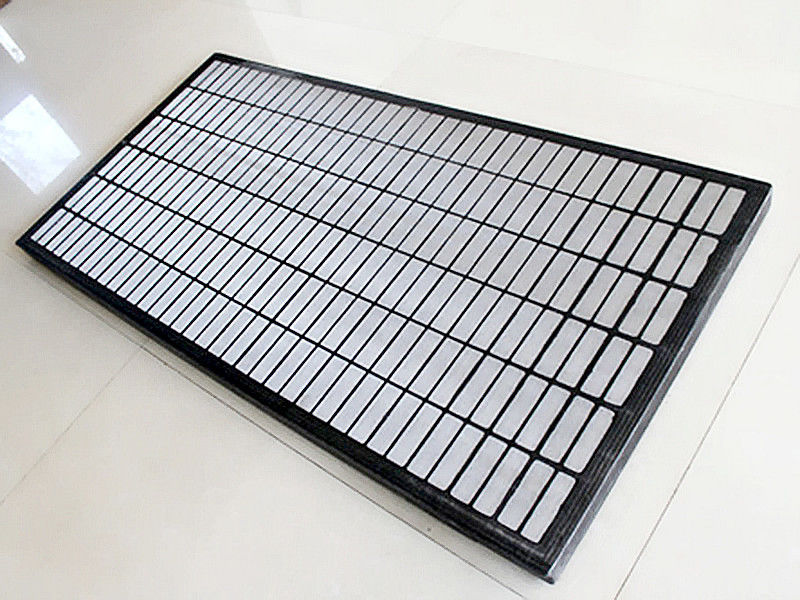

Large Image :  Oil Field Shale Shaker Screen With High Strength Composite Frame 585X1165mm

Product Details:

Place of Origin: Anping, China
Brand Name: HENGYUN
Certification: ISO9001
Model Number: GMF

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD45/Piece
Packaging Details: Carton or as customers' request
Delivery Time: 15days
Supply Ability: 20pcs/Day
Contact Now
Detailed Product Description
Material: Stainless Steel Wire Mesh Certification: ISO
Packing: Carton Color: As Your Request
Specification: 585X1168mm Name: Composite Frame Shaker Screen

GM 585X1165mm Composite Frame Shale Shaker Screen for Oil Field Factory





1. Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.

2. Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh.

3. High-strength composite frame screen and moderate tensional screening cloth, that form a reliable whole, greatly enhance the tolerable flow .

4. Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .

5. Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.

6. Excellent high-strength composite frames enhance corrosion resistance. Have good shock absorption and extend working life of screen .



Oil Shale Shaker Screen performance is vital in the operation of a drilling rig as the shakers are the primary stage in the removal of drilled solids. Improper screen selection can lead to: loss of expensive drilling fluids, premature pump failures, overloading of other solids removal equipment such as centrifuge, decreased equipment life, reduced rate of penetration and serious problems in the well bore.
