Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size

Certification
Good quality Shale Shaker Screen for sales
Good quality Shale Shaker Screen for sales
Customer Reviews
Guang Ming is a trustworthy business partner, best service, best quality.

—— Sergey

I'm so lucky to meet such a passion team, each problem will be perfectly solved before you think of it.

—— Babak

I'm Online Chat Now

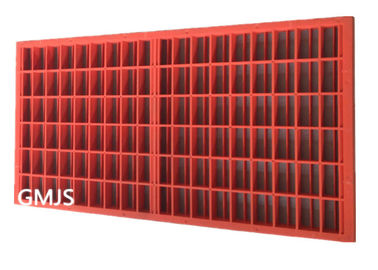

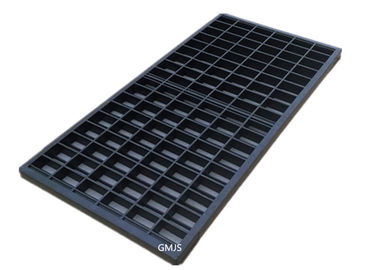

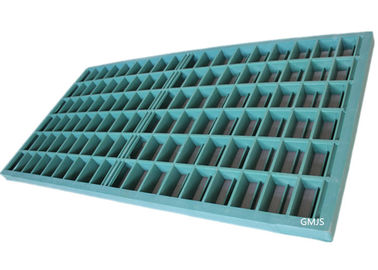

Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size

China Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size supplier
Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size supplier Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size supplier Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size supplier Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size supplier

Large Image :  Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size

Product Details:

Place of Origin: China
Brand Name: Guang Ming
Certification: ISO9001
Model Number: GMZSKJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Packaging Details: Common Packing: Carton box and Wooden box
Delivery Time: According to your order
Payment Terms: L/C, T/T
Supply Ability: 200 pcs/day
Contact Now
Detailed Product Description
Products Name: Composite Frame Shale Shaker Screen Hole Shape: 98.5%
Material: Stainless Steel And Composite Size: 585*1165mm
Mesh Range: 20-325 Number Of Layer: 2 Or 3
Certification: ISO 9001 Weight: 12.5kg
Usage: Fine Particles Screening Service Time: 500h-780h



Injection frame screens /Plastic frame shaker/Swaco Mongoose Shale Shaker Screen


Description




Mongoose series screen is spare part for Mongoose series shale shaker from M-I Swaco. At Apple shaker screen, there are common pre-tensioned steel frame screen and composite frame screen. Composite frame screen have longer service life, better appearance, and convenience on operaion. Both steel frame and composite frame screen have main parameters as below.



Swaco Mongoose Series Screen
Mesh API20---API325
Dimension Length:1165mm (45 9/10”)
Width: 585mm (23”)
Weight Steel frame: 13kg (28.6lb)
Composite frame: 12kg (26.4lb)
Screen layer 2 or 3 Layers
Wire mesh material S.S304 ,S.S316 (Customizable)
Frame material Carbon steel, Composite material



Guang Ming Products model:

Screen Model Range of Mesh Dimension
( Width x Length)
Brand & Model of Shaker
GMF-1/1 20-325 585×1165mm MONGOOSE PT&PRO
GMF-1/2 20-325 585×1165mm MONGOOSE PT&PRO
GMF-2/1 20-325 635×1250mm KING COBRA&COBRA
GMF-2/2 20-325 635×1250mm KING COBRA&COBRA
GMF-3 20-325 610×660mm MD-2&MD-3


Features




1. High strength and durable structure.

2. Good filtering effect.

3. Good processing efficiency.

4. Great flexibility, is applied to various shake shakers.

5. Corrosion resistance, shock absorption.

6. No bumps, deformation, nap, flash edge, metal solder spatter, folding, mezzanine and other appearance defects.

7. Easy to install and maintain.



Application




Composite frame screen is used to filter the drilling fluids, oil, mud and other materials in the following areas:

1. Shale shakers.

2. Oil industry.

3. Oil extraction.

4. Drilling operations.

5. Solid control system



Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size

Details



Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size

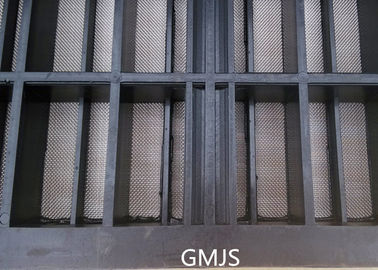

Mesh Parts

Name: 304/316 Stainless Steel Wire Mesh
Brand: Hengyun
Original: China
The Sieving Mesh parts adopt high quality 304/316 stainless steel wire mesh with good strength and wear properties.
Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size
Frame Parts
Material: polyurethane material,
Feature: High intensity, portability, shock resistence, corrosion resistence.


Package and Delivery



1 pc/carton, 40pcs/wooden case for Oil Shale Shaker Screen, or according to your requirement.


Plastic Frame Swaco Mongoose Shaker Screens 20-325 Mesh 585*1165mm Size



Services



1. We have our own workshop to produce all the Semi-finished raw materials, including SS woven mesh and the frames, THIS WILL REDUCE YOUR COST AT LEAST 10%.
2. We have 30 years experience in manufacturing and serving this products, meanwhile, we have cooperated with PetrolChina for almost 20 years with the title of high-quality supplier which means SERVING YOU STABLE QUALITY ALL THE TIME.
3. We developed the machines ourselves to the third generation, ahead of other factories, we can provide 300+ pcs composite frame screens each day, WE CAN ASSURE YOUR ORDER WILL BE FINISHED IN THE SHORTEST TIME.
4.We also provide Stainless Steel Wire Mesh and Composite Frame, If you interest, welcome to take a sample to have a test.
