Steel And Composite Frame Shaker Screen Mesh Screen In Oilfield Mud Filtation

China Steel And Composite Frame Shaker Screen Mesh Screen In Oilfield Mud Filtation supplier
Steel And Composite Frame Shaker Screen Mesh Screen In Oilfield Mud Filtation supplier Steel And Composite Frame Shaker Screen Mesh Screen In Oilfield Mud Filtation supplier Steel And Composite Frame Shaker Screen Mesh Screen In Oilfield Mud Filtation supplier Steel And Composite Frame Shaker Screen Mesh Screen In Oilfield Mud Filtation supplier

Large Image :  Steel And Composite Frame Shaker Screen Mesh Screen In Oilfield Mud Filtation

Product Details:

Place of Origin: CHINA
Brand Name: HENGYUN
Certification: ISO9001
Model Number: GMMGS-03

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: 1 pcs/carton box, 50 carton boxes/wooden box , OR as your request
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 200PC PER DAY
Contact Now
Detailed Product Description
Name: Shale Shaker Screen Type: Steel Frame , Composite Frame
Mesh Layer: 2 Or 3 Material: Stainless Steel Wire Mesh
Packing: Carton Inside Pallet Outside Or As Your Request Certification: ISO9001

Composite Frame Shale Shaker Screen , Steel Frame Shaker Screen For Oil Field





Specification:

------------------------------------------------------------------------------------------------------------------------------------

Steel Frame Screen is the most widely used screen,the features of screen of this type:



1. Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.



2. Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh.



3. High-strength composite frame screen and moderate tensional screening cloth, that form a reliable whole, greatly enhance the tolerable flow .



4. Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .

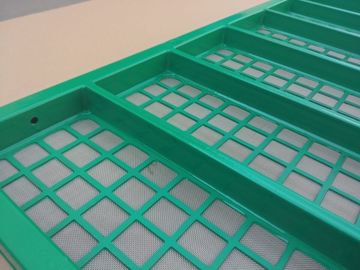

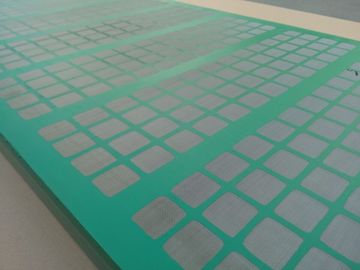

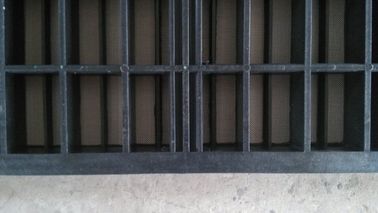

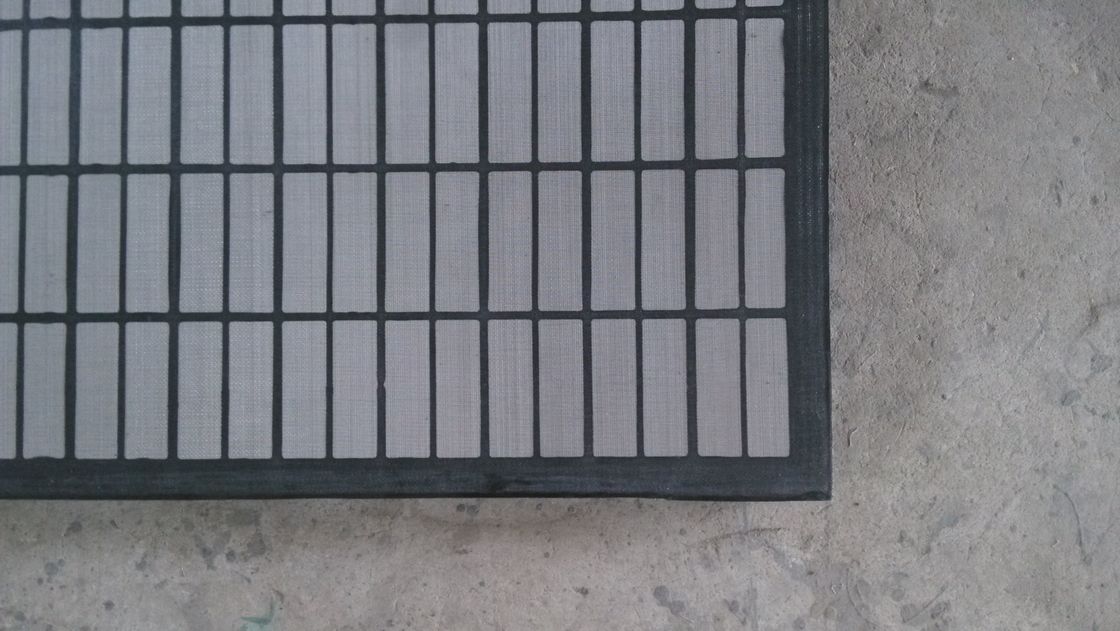

Pictures

------------------------------------------------------------------------------------------------------------------------------------



Steel And Composite Frame Shaker Screen Mesh Screen In Oilfield Mud Filtation

API RP 13C(ISO 13501)

D100 Separation(Microns)

API Screen Number

>780.0 to 925.0

API 20

>655.0 to 780.0

API 25

>550.0 to 655.0

API 30

>462.5 to 550.0

API 35

>390.0 to 462.5

API 40

>327.5 to 390.0

API 45

>275.0 to 327.5

API 50

>231.0 to 275.0

API 60

>196.0 to 231.0

API 70

>165.0 to 196.0

API 80

>137.5 to 165.0

API 100

>116.5 to 137.5

API 120

> 98.0 to 116.5

API 140

> 82.5 to 98.0

API 170

> 69.0 to 82.5

API 200

> 58.0 to 69.0

API 230

> 49.0 to 58.0

API 270

> 41.5 to 49.0

API 325
