Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer

China Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer supplier
Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer supplier Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer supplier Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer supplier Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer supplier

Large Image :  Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer

Product Details:

Place of Origin: CHINA
Brand Name: GUANGMING
Certification: ISO9001
Model Number: GMTK

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: 1 pcs/carton box, 50 carton boxes/wooden box , OR as your request
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 200PC PER DAY
Contact Now
Detailed Product Description
Mesh Material: SS304 Or 316 Type: Mine Sieving Mesh
Mesh Layer: 2 Or 3 Model: Steel Frame
Size: 585*1165mm Mesh Range: 20-325
Certification: ISO 9001 Weight: 15kg
Usage: Fine Particles Screening Service Time: 500h-780h

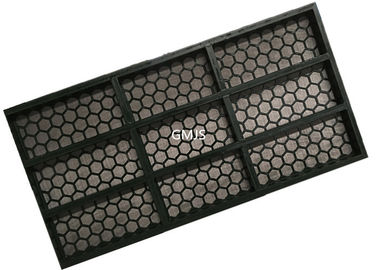

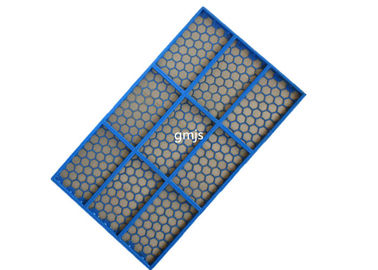

Steel frame Shale Shaker Screen with Black or Blue or Green Color





Specification




Metal frame shaker screens are kinds of common oil vibration screen, mostly applied to the shale shakers with wedge fastening equipment. Anping Guang Ming is a 30 years' factroy of shaker screen products.



The Shale Shaker Screen frames adopt that high-strength square steel tube welded to multi-ribbed construction, they are sturdy and reliable.



Anping Guang Ming control the shale shaker screen quality very strictly, we make stainless wire material by ourself to insure every part of production is qualified.





SPECIFICATIONS FOR SWACO STEEL FRAME SHALE SHAKER SCREENS
Screen Model
Range of Mesh
Dimension(W*L)
Brand&Model of shaker
GMTK-1
20-325



585×1165mm
MONGOOSE PT&PRO
GMTK-2
20-325
635×1253mm
KING COBRA
GMTK-3
20-325
913×650mm
VSM300
GMTK-4
20-325
720×1220mm
KTL48 SERIES
GMTK-5
20-325
712×1180mm
D380
GMTK-6
20-325
737*1067mm
D380



Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer
Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer
Features

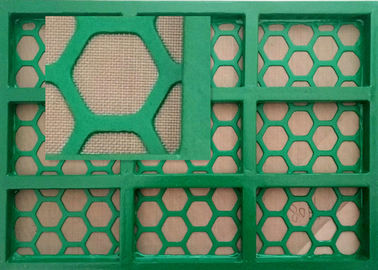

1.Steel frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.
2.Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh.
3.It forms a reliable whole, with high-strength steel frame, reinforced supports and moderate tension screening cloth, which greatly enhances the tolerate flow, strength and working life .Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing.

4. The surface is divided into more small parts. They can prevent excessive expansion of local damage. At the same time, we have the special rubber plug to repair the damage. It can save time and reduce the cost.



Detail Images




Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer

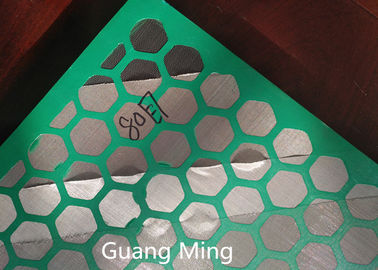

Mesh Parts

Name: 304/316 Stainless Steel Wire Mesh

Brand: Hengyun

Original: China

The Sieving Mesh parts adopt high quality 304/316 stainless steel wire mesh with good strength and wear properties.



Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer

Lining Plate Parts

Name: Steel Lining Plate
Brand: Hengyun
Original: China
Steel Lining Plates are noted for their high toughness, good strength and wear properties and good oil and oxidation resistance.



Package and Delivery




2 pc/carton, 40pcs/wooden case for Oil Shale Shaker Screen, or according to your requirement.



Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer

Steel Frame Shale Shaker Screen Vibrating Screen Wire Mesh 2 Or 3 Layer





Services




1. We have our own workshop to produce all the Semi-finished raw materials, including SS woven mesh and the frames, THIS WILL REDUCE YOUR COST AT LEAST 10%.

2. We have 30 years experience in manufacturing and serving this products, meanwhile, we have cooperated with PetrolChina for almost 20 years with the title of high-quality supplier which means SERVING YOU STABLE QUALITY ALL THE TIME.

3. We developed the machines ourselves to the third generation, ahead of other factories, we can provide 300+ pcs composite frame screens each day, WE CAN ASSURE YOUR ORDER WILL BE FINISHED IN THE SHORTEST TIME.

4.We also provide Stainless Steel Wire Mesh and Composite Frame, If you interest, welcome to take a sample to have a test.
