Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling

China Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling supplier
Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling supplier Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling supplier Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling supplier Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling supplier Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling supplier

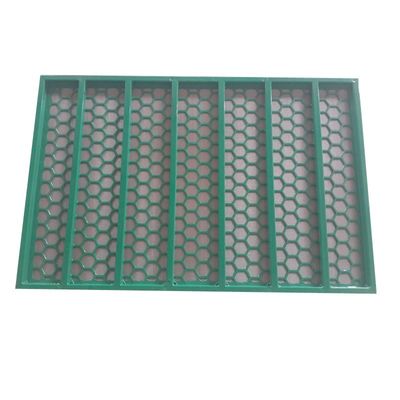

Large Image :  Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling

Product Details:

Place of Origin: CHINA
Brand Name: GUANGMING
Certification: ISO9001
Model Number: GMTK-002

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: 1 pcs/carton box, 50 carton boxes/wooden box , OR as your request
Payment Terms: Western Union, L/C, , T/T
Supply Ability: 200PC PER DAY
Contact Now
Detailed Product Description
Name: Steel Frame Shale Shaker Screen Type: Mine Sieving Mesh
Mesh Layer: 2 Or 3 Material: 304 , 316 , 316L
Working Temperature: -40℃-150℃ Specification: 1251 * 635 Mm

Steel Frame Brandt King Cobra Shaker Screen For Oil & Gas Drilling


Introduction


Brandt VSM300 shale shaker screen structure

Brandt VSM300 shaker screen including 3 different type of screen with 2 larger one and a smaller one.This VSM300 shale shaker is three decks. The first deck is scalping, then the primary, last deck is called secondary deck.


API RP 13C(ISO 13501)

D100 Separation(Microns)

API Screen Number

>780.0 to 925.0

API 20

>655.0 to 780.0

API 25

>550.0 to 655.0

API 30

>462.5 to 550.0

API 35

>390.0 to 462.5

API 40

>327.5 to 390.0

API 45

>275.0 to 327.5

API 50

>231.0 to 275.0

API 60

>196.0 to 231.0

API 70

>165.0 to 196.0

API 80

>137.5 to 165.0

API 100

>116.5 to 137.5

API 120

> 98.0 to 116.5

API 140

> 82.5 to 98.0

API 170

> 69.0 to 82.5

API 200

> 58.0 to 69.0

API 230

> 49.0 to 58.0

API 270

> 41.5 to 49.0

API 325



Specification
-------------------------------------------------------------------------------------------------------------------------------

Steel Frame Screen is the most widely used screen,the features of screen of this type:
1.The stainless steel wire cloth combined directly bonded on the steel plank, then tightly bonded together by steel frames and metal plank.
2.Every layer of wire cloth has different meshes, accurately and reasonably making screening more micro mesh.


Three Layers Steel Frame Brandt Shaker Screens For Oilfield & Gas Drilling


Packing


Packing: 1piece/ carton, 20 carton/ pallet or as your request.

Shipping: By sea

Delivery time: About 7-15days
